Contribution
- Author proposes a general-purpose Transformer backbone, called Swin Transformer, which constucts hierarchical feature maps and has linear computational complexity to image size.
- Author designs a shiftable window partition between consecutive self-attention layers, which bridges the windows of the preceding layer. This stratigy can also suffer the low latency by facilitating memory access in hardware.
Method
-
Self-attention in non-overlapped windows. The windows are arranged to evenly partition the image in a non-overlapping manner. Supposing each window contains $M × M$ patches, the computational complexity of a global MSA module and a window based one on an image of $h\times w$ patches are: \(\begin{align} \Omega(MSA)&=4hwC^2+2(hw)^2C,\\ \Omega(W\text{-}MSA)&=4hwC^2+2M^2hwC \end{align}\) where the former is quadratic to patch number $hw$, and the latter is linear when $M$ is fixed. Global self-attention computation is generally unaffordable for large $hw$, while the window based self-attention is scalable.
-

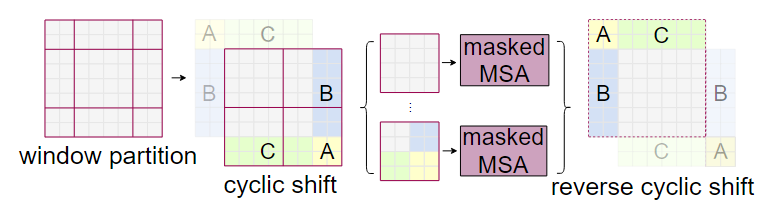

Shifted window partitioning in successive blocks. To introduce cross-window connections while maintaining the efficient computation of non-overlapping windows, author proposes a shifted window partitioning approach which alternates between two partitioning configurations in consecutive Swin Transformer blocks.
With the shifted window partitioning approach, consecutive Swin Transformer blocks are computed as \(\begin{align} &\hat z^l=W\text-MSA(LN(z^{l-1}))+z^{l-1},\\ &z^l=MLP(LN(\hat z^l))+\hat z^l,\\ &\hat z^{l+1}=SW\text-MSA(LN(z^{l}))+z^{l},\\ &z^{l+1}=MLP(LN(\hat z^{l+1}))+\hat z^{l+1}, \end{align}\) where $\hat z^l$ and $z^l$ denote the output features of the (S)W-MSA module and the MLP module for block $l$, respectively; W-MSA and SW-MSA denote window based multi-head self-attention using regular and shifted window partitioning configurations, respectively.
